Electrical Plan With Load Schedule. The applicable provisions of the latest edition of the philippine electrical code (pec). The rules and regulation of the local enforcing authority and the requirements of the local power company.
While the electrical load schedule shows the more detailed rating and computations. The following paragraphs provide a description of the power plan and the corresponding electrical load calculations. The electrical plan is sometimes called as electrical drawing or wiring diagram.
09 chevy silverado fuse diagram corvette ecu wiring diagram 1987 dodge ram 150 wiring diagram brigg and stratton 4 5 hp engine diagram
Elizabeth Bufton Extended Family Residence in Riyadh
We get the total habitable area, multiply it by the corresponding va/sq.m, add the kitchen equipment loads as well as the mechanical (hvac) equipment loads. The house electrical plan is one of the most critical construction blueprints when building a new house. The electrical plan is sometimes called as electrical drawing or wiring diagram. Refer to disconnect schedule fused disconnect switch disconnect switch low voltage circuit breaker
Source: scribd.com

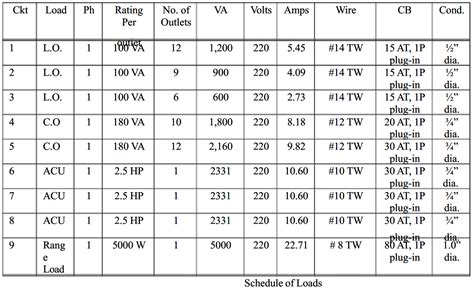

80 percent of 24,000 watts = 19,200 watts. Create a new symbol for the electrical design plan, as long as it is added to the symbols list included with the plan. Ang pag basa ng schedule of load ng electrical plan ay napakahalagang bagay na dapat malaman ng isang baguhang electrician, kaya naman sa video na ito mag ba. The.
Source: wiringideas.blogspot.com
It usually depicts the power source and its distribution on the outside wall of the building. The house electrical plan is one of the most critical construction blueprints when building a new house. In this video, the process of calculating the total connected load of a building using the load schedule method is explained and the load schedule was design..
Source: etap.com
X 100 ( if lighting ) = watts qty. We get the total habitable area, multiply it by the corresponding va/sq.m, add the kitchen equipment loads as well as the mechanical (hvac) equipment loads. The national electrical codes are the basis of making sure the electrical service is sized properly and installed correctly. All electrical works shall comply in accordance.
Source: scribd.com
A diagram as shown in figure 5 is an important element of the electrical power plan. General contractor & electrician to review drawings for any discrepancies. It usually depicts the power source and its distribution on the outside wall of the building. In short, an electrical plan describes the position. Looking at the schedules may help you recognize panel schedules.
Source: forums.autodesk.com
80 percent of 24,000 watts = 19,200 watts. Refer to interior design lighting schedule for all lighting 7 specifications. The house electrical plan is one of the most critical construction blueprints when building a new house. It is a type of technical drawing that delivers visual representation and describes circuits and electrical systems. 240 volts x 100 amps = 24,000.
Source: es.scribd.com
Refer to interior design lighting schedule for all lighting 7 specifications. X 100 ( if lighting ) = watts qty. The general electrical load requirements are based on the inside square feet area of the home which is then used to calculate the basic lighting load and required appliance circuits. A panel schedule is a useful tool when planning a.
Source: revitaddons.blogspot.com
By continuing to use the website, you consent to. Sample schedules and blank schedule examples can show you how a panel schedule looks like. Submit an electrical equipment schedule with the electrical plans. Outlet ) = watts watts volts = amp. Ang pag basa ng schedule of load ng electrical plan ay napakahalagang bagay na dapat malaman ng isang baguhang.
Source: wiringideas.blogspot.com
A diagram as shown in figure 5 is an important element of the electrical power plan. The house electrical plan is one of the most critical construction blueprints when building a new house. The national electrical codes are the basis of making sure the electrical service is sized properly and installed correctly. We get the total habitable area, multiply it.
Source: forums.autodesk.com
It consists of symbols and lines that showcase the engineer's electrical design to its clients. Download single phase panel schedule; Branch circuit(s) are properly sized for the load. From my understanding, the electrical design analysis shows an approximation of the electrical loads. It usually depicts the power source and its distribution on the outside wall of the building.
Source: eabufton.blogspot.com
80 percent of 24,000 watts = 19,200 watts. Submit an electrical equipment schedule with the electrical plans. Load schedule crt no.load description ltsc.o. It is a type of technical drawing that delivers visual representation and describes circuits and electrical systems. By continuing to use the website, you consent to.
Source: wiringideas.blogspot.com
The general electrical load requirements are based on the inside square feet area of the home which is then used to calculate the basic lighting load and required appliance circuits. Download three phase panel schedule Outlet ) = watts watts volts = amp. Refer to interior design lighting schedule for all lighting 7 specifications. 80 percent of 24,000 watts =.
Source: chegg.com
A panel schedule is a diagram used by electricians or engineers to display information regarding a panel and the circuits connected to the panel along with their corresponding loads. House plan with security layout. The following paragraphs provide a description of the power plan and the corresponding electrical load calculations. It is a type of technical drawing that delivers visual.
Source: addictionary.org
Ang pag basa ng schedule of load ng electrical plan ay napakahalagang bagay na dapat malaman ng isang baguhang electrician, kaya naman sa video na ito mag ba. We get the total habitable area, multiply it by the corresponding va/sq.m, add the kitchen equipment loads as well as the mechanical (hvac) equipment loads. The applicable provisions of the latest edition.
Source: scribd.com

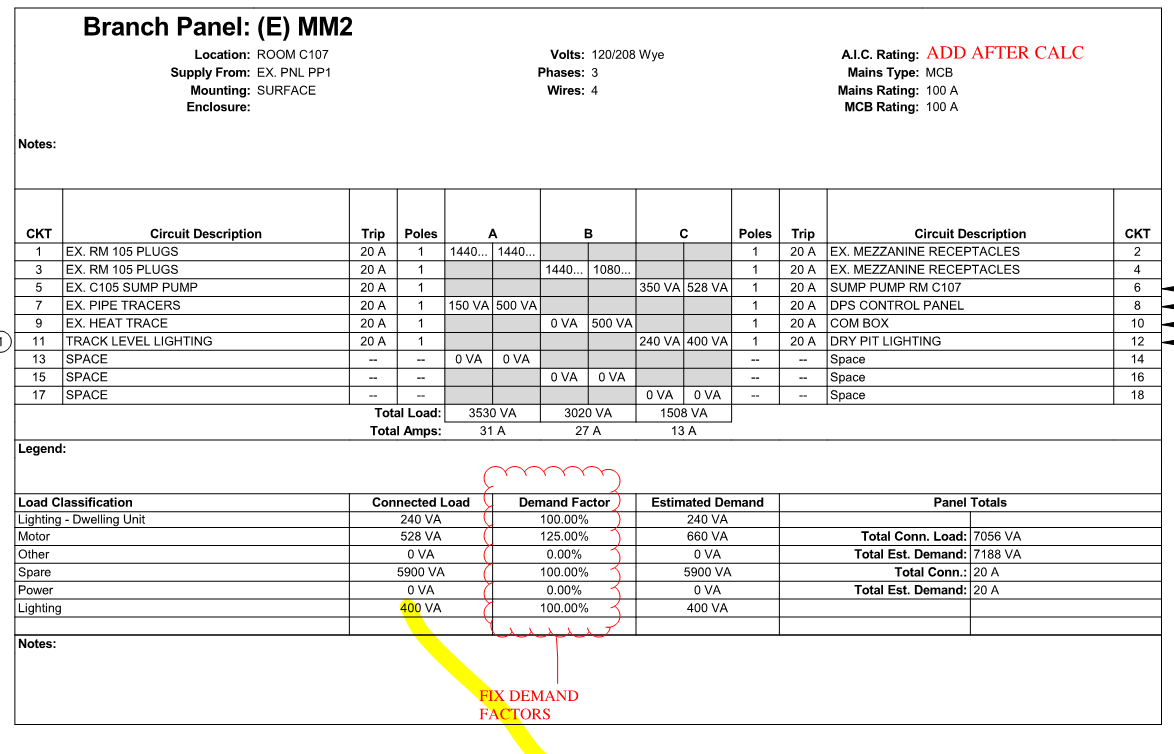

Full load amps as noted equipment/instrument locator exposed conduit. Sample schedules and blank schedule examples can show you how a panel schedule looks like. The house electrical plan is one of the most critical construction blueprints when building a new house. Developed for electrical designers and engineers, the power panel schedule software combines a graphical user interface and the intelligence.
