R 2R Ladder Dac Circuit Diagram. Uttara kumari3 1, 2, 3 r. If you want to build a very precise dac circuit, be precise while choosing the values of the resistors.
Here only two values of resistors are required i.e. The circuit can be powered directly from usb port. Where n is the total number of bits at the input.
2006 subaru baja fuse diagram 1997 ford tauru fuse box layout proform electric fan wiring diagram deutz engine starter wiring diagram free picture
DAC Methods R2R Ladder YouTube
V college of engineering, bangalore, karnataka india abstract: The number of digits per binary word is assumed to be two (i.e. Subject linear ic applications ( lica), (op amp)digital to analog converter s (dac)topics covered in this video: Here only two values of resistors are required.
Source: multisim.com
So we can get out put voltage by bellow equation. V college of engineering, bangalore, karnataka india abstract: Disadvantages of digital to analog converter (dac) 1. This page covers difference between various dac types including block diagram, equation etc. Subject linear ic applications ( lica), (op amp)digital to analog converter s (dac)topics covered in this video:
Source: multisim.com
This is a 4 bit dac network. This page covers difference between various dac types including block diagram, equation etc. The number of digits per binary word is assumed to be two (i.e. Here only two values of resistors are required. Weighted resistor circuit is the fastest converting circuit compared to other methods.
Source: multisim.com
The number of digits per binary word is assumed to be two (i.e. B1 b0 ) the typical value of feedback resistor is rf = 2r. They should exactly match the r/2r ratio. Uttara kumari3 1, 2, 3 r. This application note identifies these issues, provides methods for calculating r/2r resolution and accuracy and a means to better specify r/2r.
Source: ecstudiosystems.com
(the circuit below is shown for example !) +5v del 0 1 0 1 do d1 d2 d3 rf = 2r rgo 2r trg1 2r rg2 2r rg3 2r rso rs1 rs2 rs3 2r r r r o vout. The value of r can be any where between 2.5k$\omega$ to 10k$\omega$ Disadvantages of digital to analog converter (dac) 1. B1.
Source: chegg.com
Here only two values of resistors are required. The switch positions decides the binary word ( i.e. To have more bits, add an additional resistor for each additional bit. The number of digits per binary word is assumed to be two (i.e. Let the binary value b3 b2 b1 b0, if b3=1, b2=b1=b0=0, then the circuit is shown in the.
Source: youtube.com
Disadvantages of digital to analog converter (dac) 1. To analog conversion (dac) circuit and in the selection of the r/2r ladder itself. V college of engineering, bangalore, karnataka india abstract: The inverting input terminal of the op amp work as a summing amplifier for the ladder inputs. Here only two values of resistors are required.
Source: electronics.stackexchange.com
Disadvantages of digital to analog converter (dac) 1. (the circuit below is shown for example !) +5v del 0 1 0 1 do d1 d2 d3 rf = 2r rgo 2r trg1 2r rg2 2r rg3 2r rso rs1 rs2 rs3 2r r r r o vout. See the answer see the answer see the answer done loading. To analog.
Source: ecstudiosystems.com
To have more bits, add an additional resistor for each additional bit. This application note identifies these issues, provides methods for calculating r/2r resolution and accuracy and a means to better specify r/2r ladder networks. Here only two values of resistors are required i.e. Weighted resistor circuit is the fastest converting circuit compared to other methods. The output voltage of.
Source: researchgate.net
The number of digits per binary word is assumed to be two (i.e. This problem has been solved! V college of engineering, bangalore, karnataka india abstract: Here only two values of resistors are required i.e. In this video, the circuit has three nodes.
Source: trustbb.info
The inverting input terminal of the op amp work as a summing amplifier for the ladder inputs. It mentions advantages and disadvantages of them. They should exactly match the r/2r ratio. Example circuit diagram of a device that uses a dac. First, this video shows analysis of the resistance on third node.
Source: wiringview.co
Example circuit diagram of a device that uses a dac. This is a 4 bit dac network. B1 b0 ) the typical value of feedback resistor is rf = 2r. Disadvantages of digital to analog converter (dac) 1. Uttara kumari3 1, 2, 3 r.
Source: ecesimplified.net
R/2r function let’s take a look at how an r/2r ladder works. This page covers difference between various dac types including block diagram, equation etc. Now, the above circuit diagram looks like an inverting amplifier. The inverting input terminal of the op amp work as a summing amplifier for the ladder inputs. Uttara kumari3 1, 2, 3 r.
Source: researchgate.net
High resolution and accuracy can be achieved. So we can get out put voltage by bellow equation. V college of engineering, bangalore, karnataka india abstract: Where n is the total number of bits at the input. This is a 4 bit dac network.

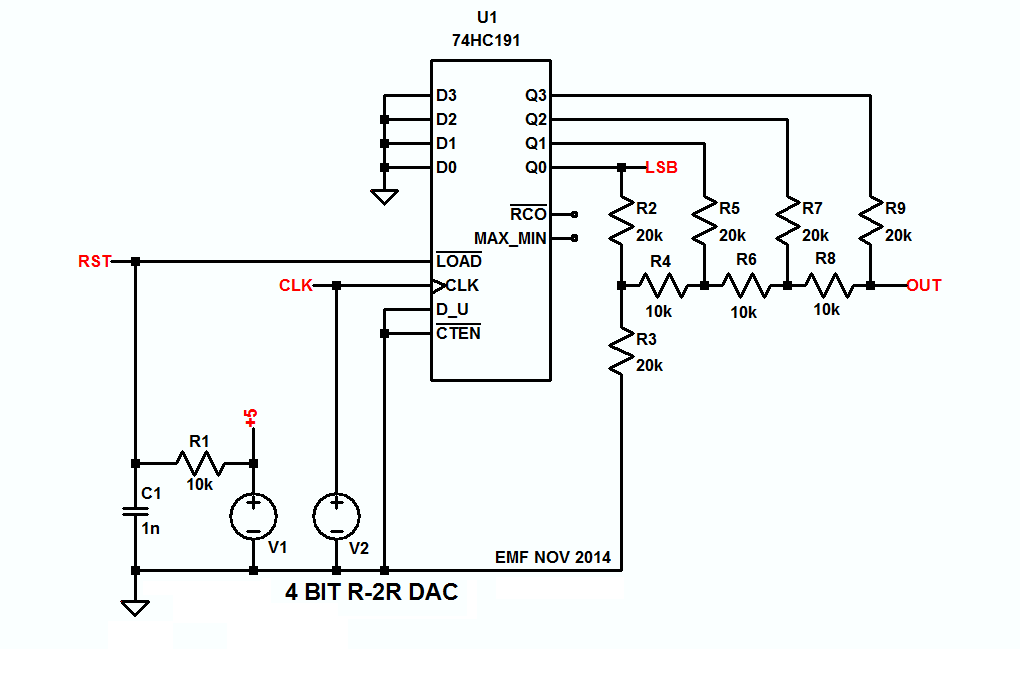

Source: electronics.stackexchange.com
The number of digits per binary word is assumed to be two (i.e. Now, the above circuit diagram looks like an inverting amplifier. As we know dac is the short form of d to a. Where n is the total number of bits at the input. They should exactly match the r/2r ratio.
Source: wiringview.co
The inverting input terminal of the op amp work as a summing amplifier for the ladder inputs. As we know dac is the short form of d to a. Uttara kumari3 1, 2, 3 r. To analog conversion (dac) circuit and in the selection of the r/2r ladder itself. This page covers difference between various dac types including block diagram,.
Source: youtube.com
R/2r function let’s take a look at how an r/2r ladder works. V0 = vr* (rf/r) [b1/21 + b2/22 + b3/23 + b4/24] V college of engineering, bangalore, karnataka india abstract: To analog conversion (dac) circuit and in the selection of the r/2r ladder itself. First, this video shows analysis of the resistance on third node.
Source: microcontrollerslab.com
Uttara kumari3 1, 2, 3 r. Weighted resistor circuit is the fastest converting circuit compared to other methods. V 0 = − 2 r 2 r ( − v r 2) v 0 = v r 2. First, this video shows analysis of the resistance on third node. The circuit can be powered directly from usb port.
Source: wiringview.co
Subject linear ic applications ( lica), (op amp)digital to analog converter s (dac)topics covered in this video: Uttara kumari3 1, 2, 3 r. It is having an input voltage of − v r 2 volts, input resistance of 2 r ω and feedback resistance of 2 r ω. So we can get out put voltage by bellow equation. (the circuit.
Source: youtube.com
Now, the above circuit diagram looks like an inverting amplifier. Uttara kumari3 1, 2, 3 r. Dac’s are simple to implement. It is having an input voltage of − v r 2 volts, input resistance of 2 r ω and feedback resistance of 2 r ω. This page covers difference between various dac types including block diagram, equation etc.
Source: youtube.com
The inverting input terminal of the op amp work as a summing amplifier for the ladder inputs. This problem has been solved! Now, the above circuit diagram looks like an inverting amplifier. Disadvantages of digital to analog converter (dac) 1. As we know dac is the short form of d to a.
